| Alligator Clip/Leads | |||||||
 |  Model 10119 Alligator ClipStandard clip with barrel for banana plug Solder or crimp connection 2" long with jaws open 3/8 $0.20 Click here to order | |  Model 10120 Nickel Plated Alligator ClipNickel plated with screw connection. Strong spring with hard bite. 2" long. No soldering necessary. $0.25 Click here to order | ||||
| |  Model 10120B/R Insulated Nickel Plated Alligator ClipEquipped with screw, making it ideal for solderless connection. Overall length 2", plastic insulating sleeve 5/8". Color: Black: Option 1 Red: Option 2 $0.25 Click here to order | |  Model 10139B/R 15 Amp ClipRed & Black insulator (7/8" long) • Crimp or solder connection • 2" long with jaws open 13/16" Available in: Black: Option 1 Red: Option 2 $0.55 Click here to order | ||||
| |  Model 10141B/R 50 Amp ClipRed & Black insulator (1-3/4" long) • Crimp or solder connection • 3-29/32" long with jaws open 15/16" Available in: Black: Option 1 Red: Option 2 $1.25 Click here to order | |  Model 10159 Boot for 268 Alligator ClipsThese insulators are intended to be used with 268, or equivalent alligator clips. Available in Black, Red, Yellow, Green, Blue and White. $0.10 -3 Color/Sizes available Click here to order | ||||
| |  Model 267 Nickel Plated Alligator ClipExceptionally small clip ideal for printed circuit and miniature testing. Strong spring for sure grip. Only 7/8" long. $0.30 -3 Color/Sizes available Click here to order | |  Model 268 Nickel Plated Alligator Clip with BootStrong spring sure-grip nickel plated alligator clips, with snug-fitting insulating plastic boots. Available in Black and Red. $0.20 -3 Color/Sizes available Click here to order | ||||
| |  Model 500 IC Test Leads5 color-coded, 16" test leads with miniature hook-on prods at both ends. A must for technicians and experimenters who want temporary interconnects without danger of shorting. Colors: Red, Black, Yellow, Green and White $11.25 Click here to order | ||||||
| Circuit Breakers | |||||||
| |  Model B700 Push Button Circuit Breaker 3 to 12 AmpB7000 Series are single pole, thermal circuit breakers that features a recessed reset button which cannot be manually pulled out to disconnect the circuit. When an overload occurs and the breaker opens, it allows the reset button to �pop out� for visible trip indication. $4.22 Click here to order | | Model B700 Push Button Circuit Breaker 15 to 50 Amp B7000 Series are single pole, thermal circuit breakers that features a recessed reset button which cannot be manually pulled out to disconnect the circuit. When an overload occurs and the breaker opens, it allows the reset button to �pop out� for visible trip indication. $4.70 Click here to order | ||||
| Kits, Electronic | |||||||
| |  Model 80-010 Three Digit Counter KitAn event counter, this economical counter module may be ganged for six or nine digits. Has count and reset switches with debounce built-in. Operates on a nine volt battery. This is a two board kit with the count and reset switches along with the d $33.35 Click here to order | |  Model 80-040 Intro to a Power Supply KitA practical battery eliminator for circuit projects at the bench. This is a basic power supply using two IC's (7805) regulators. User needs to supply a transformer up to 20 VAC for input. Outputs are regulated, one variable and one constant 5 V $21.45 Click here to order | ||||
| | Model 80-050 44 Watt Stereo Power Amplifier Kit The circuit is a gem; a TDA1554 IC is the heart of an amplifier that will ouput up to 22 watts per channel with excellent sound quality. (Typical THD less than 0.1%). Originally intended for automobileuse but can be used as a home amplifier if you have a good power supply. Operates on 13 to 14.4 volts and can draw as much as 5 amps. $41.95 Click here to order | | Model 80-060 FM Stereo Transmitter Kit This is a circuit that will broadcast CD quality sound to your FM Walkman, home stereo or automobile radio. It produces a strong signal that will generally cover the average home and yard. It is stable enough to use even with digitally tuned FM re $49.83 Click here to order | ||||
| |  Model 80-065 FM Transmitter Wireless Mic KitThis is the "Cadillac" of FM transmitters, and wireless mics. Transmits in the standard FM radio band; tune to open frequency. Varactor tuning results in stable signal, free from stray capacitance and drifting. Sensitive, picks up conversati $17.50 Click here to order | |  Model 80-070 3 Volt FM Transmitter KitThe most powerful circuit we've seen that operates on such low voltage (just two AA cells). A range of 100 meters can be expected and given a good antenna and good conditions, 500 meters is not unusual. Can be operated on up to about 9 volts. T $12.25 Click here to order | ||||
| |  Model 80-080 Light Alarm KitA sensitive photo Darlington transistor is used with CMOS nand gate. The circuit detects light and triggers a siren. You could add your own triac or relay and switch practically anything. The kit uses the MEL12 Darlington superalpha phototransistors& $15.00 Click here to order | |  Model 80-090 Oscillator Building Blocks KitBuild and experiment with astable, monostable and RS flip-flop multivibrators on one PC board with six LED's. See and understand exactly how each works. This is a very educational kit and an excellent introduction to electronics. Operates on on $13.75 Click here to order | ||||
| | Model 80-101 Home/Car Alarm Kit This circuit is an alarm for the home or car door, and a lot more. It employs a magnet and reed switch to trigger the circuit. An integral piezo sounder produces the alarm sound (100db). But, a relay capable of handling up to 10 amps AC may be $14.48 Click here to order | | Model 80-103 Photo Sensor with control relay Kit The most popular usage for this kit is to make your own night light. But, you could switch just about any applicance either on or off with either darkness or daylight. Light sensitivity is adjustable over quite a range. The relay can handle up to $11.45 Click here to order | ||||
| | Model 80-104 Stereo Preamplifier Kit Amplify any tiny audio signals about fifty times, and deliver them to a power amplifier cleanly and undistorted. An AGC (automatic gain control) eliminates pops or distortion. This circuit will be useful in boosting the output from tape heads, $13.25 Click here to order | | Model 80-105 Voice Changer Kit Your voice can be changed to add a vibrato, like those used to disguise secret witnesses. Or, you may change your voice tone up or down; women sound like men and vice versa. Includes a very robotic voice as well. A microphone and speaker are in $17.89 Click here to order | ||||
| | Model 80-106 Sound Effects Generator Kit Another novel circuit, that might be useful for special theatrical effects. Or, if you are simply a practical joker. The circuit can produce sounds such as the tick-tock of a grand father's clock, a heart monitor (as in the hospital), $9.95 Click here to order | |  Model 80-109 Unipolar Stepper Motor Driver KitA stepper may be used to orient a video camera, antenna, spotlight, or for table position in production. This driver will control a 5, 6 or 8 lead unipolar stepper motor (often available from surplus dealers). The circuit permits fast or $57.95 Click here to order | ||||
| |  Model 80-130 Sound Activated Switch for Tape Recorder KitTurn on any tape recorder that has a remote on/off jack. The circuit has a feed back and delay circuit for robust operation. You could add a relay for switching heavy loads; and tape recorders are not the limit. How about turning on lights via voice or a whistle? Circuit switches off after six seconds of silence. $19.35 Click here to order | | Model 80-140 110 volt AC Strobe Light Kit Usually more practical than a battery operated strobe, runs on standard house current. The flash rate is adjustable from about one every three seconds to about three per second. Uses are signal beacon, trade show kiosks, discos, etc... Ve $42.35 Click here to order | ||||
| |  Model 80-160 FM Telephone Transmitter KitMiniature transmitter attaches to the phone line and transmits the conversation. Transmits 200 yards and more in most installations. Tunable to clear spot on the FM band of your radio. Completely parasitic; i.e. uses the power from the telephone line $14.50 Click here to order | |  Model 80-170 Audio Amplifier Module KitA good, variable gain amp to use with other projects, amplify radio circuit etc... Uses the National Semiconductor LM386 integrated circuit; a well known and quality IC. Kit includes the data sheets from National. Battery powered, may be ope $17.60 Click here to order | ||||
| |  Model 80-200 Ultrasonic Movement Detector Kit The circuit uses a matched pair of 40Khz transducer elements to detect movement out to about 22 feet. You may add a relay (not included) to switch a heavy appliance etc... The unit switches just an LED as supplied. The circuit can be switched to latch "on". An ideal alarm circuit that can't be easily fooled. $41.40 Click here to order | |  Model 80-230 OpAmp Function Generator KitA very low cost and simple circuit to generate square, pseudo-sine wave and triangular waveforms in the audio frequency range. Uses a quad OpAmp type LM384. this is an educational kit and recommended to instructors and to the person wanting to und $13.75 Click here to order | ||||
| |  Model 80-240 Logic Probe KitAn indispensible piece of equipment for testing and measuring digital equipment. Normally used for fault finding and testing but can also be a great help in design work or to see how digital equipment works. Switch for use in both TTL and CMOS. Detects very fast pulses. Output is 3 LED's and audio indicator. $16.15 Click here to order | | Model 80-270 One Watt Amplifier Kit While one watt is plenty for personal use (most small radios that have speakers produce less than 1/4 watt) the size is quite small and easy to fit into a case with other projects. Battery operated from 3 to 15 volts, six volts is optimum. Output $13.25 Click here to order | ||||
| | Model 80-280 Sound Activated FM Transmitter Kit Sound turns on the transmitter, which operates in the FM radio band. A neat way to catch a thief in another room or garage. The volume of sound needed to trigger the circuit is adjustable. The two stage transmitter has good range and the circuit p $17.85 Click here to order | |  Model 80-290 Electronic Combination Lock KitThis really is an excellent introduction to electronic security systems. Set your own four digit code, a wrong sequence simply resets the lock. The correct code will activate a relay that can handle up to 240 volts AC. The nine digit keypad is on $21.35 Click here to order | ||||
| |  Model 80-300 PIR Movement Detector KitOne of our favorite circuits. The circuit sees infrared heat, such as from an intruder's body. The kit uses a late development in movement IC's and employs a very sophisticated circuit. You may set it to non-triggerin daylight hours. When tr $44.10 Click here to order | |  Model 80-310 9 Volt Siren KitA simple circuit with a lot of output. Uses a voltage controlled oscillator; and includes a half watt speaker. Connect it to an alarm system, sound switch or whatever you dream up. 9 volt battery operated. $14.30 Click here to order | ||||
| |  Model 80-320 Two Stage FM Transmitter KitA powerful little circuit with suprisingly good audio quality. Can transmit up to about 1/2 mile in open country. This is probably the most powerful FM transmitter that you can legally purchase. An electret microphone is used to add sensitivity. The $13.35 Click here to order | |  Model 80-375 5 LED Multi-Sequential Flasher KitFlashes five, very bright LED's in any one of seven, user selectable patterns. A chip-on-board IC makes assembly very easy; the chip is supplied premounted on its own board and a motherboard contains the entire circuit. Operates on 3 volts D $13.50 Click here to order | ||||
| |  Model 80-470 8 Watt Audio Amplifier KitLow voltage operation does not mean low power. This amplifier can produce a full eight watts into a standard four or eight ohm speaker. Actually, it can deliver up to 11 watts if you use a 16 volt supply. You may use this amplifier with a wide ran $25.45 Click here to order | |  Model 80-525 5 LED Sequential Flasher KitThe circuit flashes five LED's in sequence repeatedly until you turn it off. Flash rate is user adjustable. The circuit uses an IC chip-on-board which you will then mount on the included motherboard; battery holder is included. Powered by a 3 volt supply or battery; good for a child's toy or for those "high-tech" looking special effects for stage plays etc... $13.85 Click here to order | ||||
| |  Model 80-580 Infrared Toggle Switch KitControl about any device using the remote control from just about any TV set. The circuit switches an on-board SPDT relay; turn it on with the remote; and turn it off with another signal. The relay contacts are rated at one amp at 125 volts AC. The c $30.00 Click here to order | | Model 80-620 Movement Detector Components Kit This is not quite a complete kit; the package contains the three key parts for a PIR detector. You get the PCB mounted Fresnel lens, a PIR movement sensor and the integrated circuit that we use in the full kit $15.33 Click here to order | |  Model 80-880 Stereo VU Meter KitThis is a very eye appealing audio accessory. Displays an approximate output level for each channel of stereo amplifier. Connects to the speaker terminals; levels are displayed in ten discrete steps. User may select a moving dot bar appearance. Uses two LM3915 IC's; includes a discussion of measuring audio power. $28.50 Click here to order | ||
| |  Model 80-910 Four Train Sound Effect KitIdeal for model railroads; produces the whistle, train chugging sound, crossing bell and the "clicket-clack" of crossing a bridge. This uses the chip-on-board circuitry. Very simple kit. $13.50 Click here to order | |  Model 80-920 Cellular Phone Sound Effects KitGood for a kids toy; imitates the cellular phone sounds perfectly. This kit uses the chip-on-board circuitry. Very simple kit. $9.46 Click here to order | ||||
| | Model 80-980 Audio Preamplifier Kit Boost low level audio from mike element, magnetic cartridge or whatever so that input is high enough for an amp like Model 80-170. Operates from 6 to 12 volts $15.05 Click here to order | ||||||
. <BR>$37.55<font size=2><BR><a href=/shopping/pricelist.asp?prid=541&brandinc=54>Click here to order</a><BR></td></tr><TR><TD> </td></tr><TR><TD valign=top> <IMG SRC='/shopping/images/rightarrow.gif'></td><TD valign=top width='50%' wid!th=125><img src='/shopping/images/80680.jpg' width='150' height='122' border=0 align=left><font size=2><a href=/shopping/pricelist.asp?prid=540&brandinc=54><font color=blue>Model 80-680 Variable Power Supply Kit</font></a><BR>A very basic power supply that can be adjusted over a range of about 1.5 to 35 volts DC. If you add a heat sink (included0, you can run it as ){kind=link}
| Magnetic Switches | |||||||

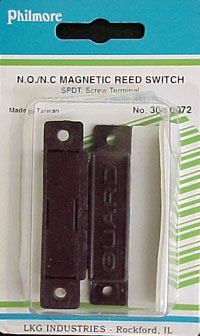

| |  Model 30-10072 N.O./N.C. Magnetic Reed SwitchCurrent Rating: 0.5A @ 20V DC, 10 Watts (Max.) Voltage Rating: 120V AC (Max.) @ 0.08A 80V DC (Max.) @ 0.1A Contact Material: Iron Alloy - Gold Plate Terminal Material: Plated Steel
Terminal Type: Screw | |  Model 30-17050 N.C. Magnetic Reed SwitchCurrent Rating: .5A@ 100VDC Initial Contact Resistance: 300 Meg ohm (Max.) Operating Gap: 1.25” Max Mounting Centers: 2.094” (2-3/32”) Mounting Hole: .15” (Max.) Terminal Type: Screw N.C (Normally closed) when magnet is within actuation range $6.00 Click here to order | ||||
| |  Model 30-17051 N.O. Magnetic Reed SwitchCurrent Rating: .5A@ 100VDC/125VAC Initial Contact Resistance: 300 Meg ohm (Max.) Operating Gap: .90” Max Mounting Centers: 1.56” (1-9/16”) Mounting Hole: .134” (Max.) Terminal Type: Screw $6.85 Click here to order | |  Model 30-17054 N.O. Magnetic Reed SwitchCurrent Rating: .5A@ 100VDC/125VAC Initial Contact Resistance: 300 Meg ohm (Max.) Operating Gap: .60”-1.5” Mounting Centers: 1” Mounting Hole: .125” (Max.) Terminal Type: 10” Leads, 24 AWG $6.30 Click here to order | ||||
| |  Model 30-17060 N.C. Recessed Magnetic Reed SwitchCurrent Rating: .2A@ 12VDC Terminal Type: 12” Leads, 22 AWG $6.25 Click here to order | ||||||
| Micro Switches | |||||||

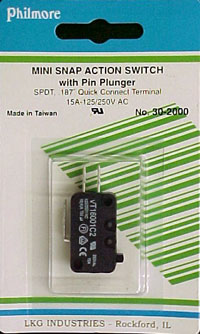

| |  Model 30-2000 Mini Snap Action Swith w/ Pin PlungerCurrent Rating: 15A @ 125V/250V AC Initial Contact Resistance: 15 Meg ohm (Max.) Insulation Resistance: 500V DC 1000 Meg ohm (Min.) Dielectric Strength: 1000V AC for 1 Minute Contact Material: Silver Terminal Material: Brass - Silver Plate

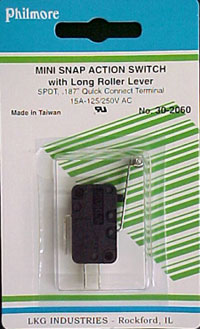

Terminal Type: .187� Quick Connect | |  Model 30-2060 Mini Snap Action Swith w/ Long Roller LeverCurrent Rating: 15A @ 125/250V AC Initial Contact Resistance: 15 Meg ohm (Max.) Insulation Resistance: 500V DC 1000 Meg ohm (Min.) Dielectric Strength: 1000V AC for 1 Minute Contact Material: Silver Terminal Material: Brass - Silver Plate
Terminal Type: .187� Quick Connect | ||||
| Push Button Switches | |||||||
| |  Model 30-14348 Heavy Duty AC/DC Push Button SwitchCurrent Rating: 6A @ 125V AC, 3A @ 250V AC
Insulation Resistance: 100 Meg ohms. (Min.)
Actuator & Bushing Material: Brass/Nickel Plate

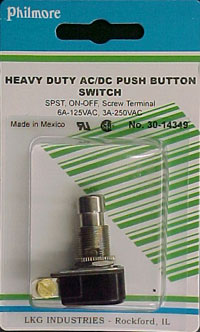

Actuation Force: 6-8 lbs. | |  Model 30-14349 Heavy Duty AC/DC Push Button SwitchCurrent Rating: 6A @ 125V AC, 3A @ 250V AC Insulation Resistance: 100 Meg ohms. (Min.) Dielectric Strength: 1000V (Min.) Base Material: Phenolic Actuator & Bushing Material: Brass/Nickel Plate
Actuation Force: 6-8 lbs. | ||||

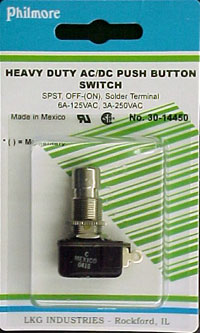

| | Model 30-14450 Heavy Duty AC/DC Momentary Push Button Switch Current Rating: 6A @ 125V AC, 3A @ 250V AC Insulation Resistance: 100 Meg ohms. (Min.) Dielectric Strength: 1000V (Min.) Base Material: Phenolic Actuator & Bushing Material: Brass/Nickel Plate
Actuation Force: 6-8 lbs. | ||||||
| Rocker Switches | |||||||

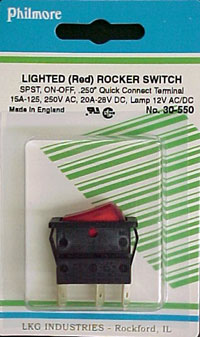

| |  Model 30-550 Lighted (Red) Rocker SPST SwitchELECTRICAL RATINGS: 15A 125-250V AC T85 UL E45221 1/2HP 125V AC 1HP 250V UL E45221 16A 125-250V AC Res CSA LR10990 16 (4)A 250V AC T85 VDE 45152 20A 28V DC Approvals N/A MATERIALS: Body: Nylon 6.6 Actuator Transparent: Polycarbonate Contact Gap: u Micro Contact Material: Silver Alloy

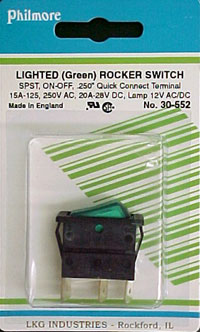

| |  Model 30-552 Lighted (Green) Rocker SPST SwitchELECTRICAL RATINGS: 15A 125-250V AC T85 UL E45221 1/2HP 125V AC 1HP 250V UL E45221 16A 125-250V AC Res CSA LR10990 16 (4)A 250V AC T85 VDE 45152 20A 28V DC Approvals N/A MATERIALS: Body: Nylon 6.6 Actuator Transparent: Polycarbonate Contact Gap: u Micro
Contact Material: Silver Alloy | ||||

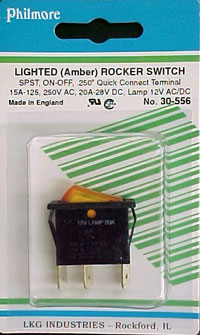

| |  Model 30-556 Lighted (Amber) Rocker SPST SwitchELECTRICAL RATINGS: 15A 125-250V AC T85 UL E45221 1/2HP 125V AC 1HP 250V UL E45221 16A 125-250V AC Res CSA LR10990 16 (4)A 250V AC T85 VDE 45152 20A 28V DC Approvals N/A MATERIALS: Body: Nylon 6.6 Actuator Transparent: Polycarbonate Contact Gap: u Micro

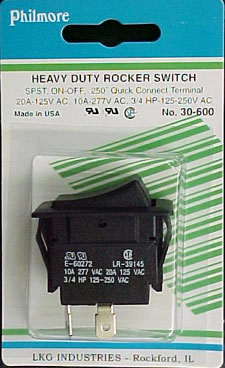

Contact Material: Silver Alloy | |  Model 30-600 Heavy Duty SPST Rocker SwitchCurrent Rating: 20A @ 125V AC, 10A @ 277V AC 3/4 HP @ 125-250V AC Initial Contact Resistance: 5 Meg ohm (Max.) Insulation Resistance: 100 Meg ohm (Min.) Dielectric Strength: 1000V AC for 1 minute Gasket: Molded Elastomer Case: UL94 Flame Class, 94V-2 Contact Material: Brass Terminal Material: Brass
Terminal Type: .250� Quick Connect
| ||||

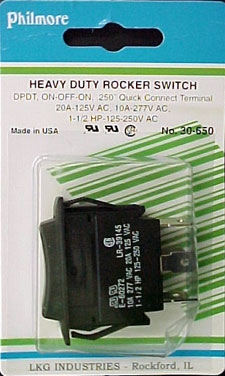

| |  Model 30-650 Heavy Duty DPDT Rocker SwitchCurrent Rating: 20A @ 125V AC, 10A @ 277V AC 1-1/2 HP @ 125-250V AC Initial Contact Resistance: 5 Meg ohm (Max.) Insulation Resistance: 100 Meg ohm (Min.) Dielectric Strength: 1000V AC for 1 minute Gasket: Molded Elastomer Case: UL94 Flame Class, 94V-2 Contact Material: Brass Terminal Material: Brass
Terminal Type: .250 Quick Connect

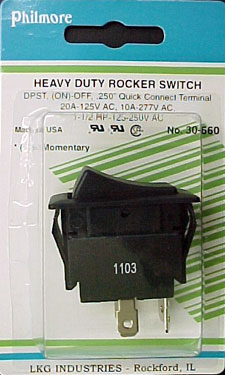

| |  Model 30-660 Heavy Duty DPST Momentary Rocker SwitchCurrent Rating: 20A @ 125V AC, 10A @ 277V AC 1-1/2 HP @ 125-250V AC Initial Contact Resistance: 5 Meg ohm (Max.) Insulation Resistance: 100 Meg ohm (Min.) Dielectric Strength: 1000V AC for 1 minute Gasket: Molded Elastomer Case: UL94 Flame Class, 94V-2 Contact Material: Brass Terminal Material: Brass
Terminal Type: .250� Quick Connect
| ||||
| |  Model 30-695 Heavy Duty DPDT Momentary Rocker SwitchCurrent Rating: 20A @ 125V AC, 10A @ 277V AC 1-1/2 HP @ 125-250V AC Initial Contact Resistance: 5 Meg ohm (Max.) Insulation Resistance: 100 Meg ohm (Min.) Dielectric Strength: 1000V AC for 1 minute Gasket: Molded Elastomer Case: UL94 Flame Class, 94V-2 Contact Material: Brass Terminal Material: Brass
Terminal Type: .250 Quick Connect
| ||||||
| Switches | |||||||
| |  Model 30-10074 Mercury Tilt SwitchSPST, NO or NC Current Rating: 1A @ 250V AC Tilt Angle: 12 degrees Contact Material: Iron Alloy/Mercury Terminal Material: Copper Wire
Terminal Type: Wire Leads | |  Model 30-10076 Key SwitchDPST, Key Pull in Off position only, Solder Terminal Current Rating: 4A @ 125V AC, 2A @ 250V AC Initial Contact Resistance: 10 Meg ohm (Max.) Insulation Resistance: 500V DC 100 Meg ohm (Min.) Dielectric Strength: 1000V AC for 1 Minute Contact Material: Brass - Nickel Plate Terminal Material: Brass - Nickel Plate Terminal Type: Solder
| ||||
| |  Model 30-10077 Key SwitchDPST, Key pull in On or Off position, Solder Terminal Current Rating: 4A @ 125V AC, 2A @ 250V AC Initial Contact Resistance: 10 Meg ohm (Max.) Insulation Resistance: 500V DC 100 Meg ohm (Min.) Dielectric Strength: 1000V AC for 1 Minute Contact Material: Brass - Nickel Plate Terminal Material: Brass - Nickel Plate Terminal Type: Solder
| | Model 30-15100 Rotary Switch 1 Pole - 12 Position Rotary Switch Non-Shorting type Solder Terminals 0.3A @ 125VAC Enclosed Contact $3.20 Click here to order | ||||
| | Model 30-15112 Rotary Switch 1 Pole - 12 Position Rotary Switch Shorting Type Solder Terminals 0.3A @ 125VAC $3.10 Click here to order | | Model 30-17054 N.O. Magnetic Reed Switch Low Profile, SPST Current Rating: .5A@ 100VDC/125VAC Initial Contact Resistance: 300 Meg ohm (Max.) Operating Gap: .60�-1.5� Mounting Centers: 1� Mounting Hole: .125� (Max.)
Terminal Type: 10� Leads, 24 AWG | ||||
| | Model 30-17060 Recessed Magnetic Reed Switch SPST, On-Off, NC Current Rating: 0.2A @ 12VDC Terminal Type: 12" Leads
Mounting Hole: 0.25" | |  Model 30-17070 Roller Ball SwitchSPST, Off-(On)Momentary Current Rating: .2A@ 12VDC Mounting Centers: 1.16� Mounting Hole: .12� Dimensions: .85� W x 1.6� Lx 1.8�H
Terminal Type: 10� Leads, 24 AWG | ||||
| |  Model 30-17072 Non Mercury Tilt SwitchSPST, NO or NC Depending on the Angle Current Rating: .5A@ 24V AC Tilt Angle: 15 degrees
Terminal Type: .35� Leads | |  Model 30-17090 Foot SwitchSPST Momentary On Foot Switch 5A @ 125VAC, 3A @ 250VAC
Mechanical Life: 20,000 Cycles | ||||
| |  Model 30-9157 Pull Chain SwitchSPST, On-Off, Stripped Wire Lead Terminal Current Rating: 6A @ 125V AC, 3A @ 250V AC Initial Contact Resistance: DC 2.5V-1A, 20 Meg ohm (Min.) Insulation Resistance: 500V DC 100 Meg ohm (Min.) Dielectric Strength: 1500V AC for 1 minute Contact Material: Brass - Bright Nickel Plate
Terminal Material: 6� 18 AWG 105 C o Wire | |  Model 30-9158 Pull Chain SwitchTwo Circuit, 3-Way (L-1, L-2, L-1&2, Off) Current Rating: 6A @ 125V AC, 3A @ 250V AC
Initial Contact Resistance: DC 2.5V-1A, 20 Meg ohm (Min.)
Contact Material: Brass - Bright Nickel Plate
Terminal Material: 6� 18 AWG 105 C o Wire | ||||
| Terminal Blocks | |||||||
| |  Model 13-1200 EURO STYLE BARRIER STRIPThese Euro style barrier strips are available in several sizes depending on your carry current needs. They are cutable to almost any desired length. These terminal blocks are available in 20A, 30A, 35A, and 50A versions. DESCRIPTION: Base: With 1.2 - 2.5mm raised base Housing Material: Polyamide 66 (Nylon 66), UL 94V-2 Temperature Rating: 105oC (UL), -30oC to 110oC (VDE) Terminal Insert: Brass metal alloy, nickel plated Screw: Zinc plated Model: 13-1208 600V 20A 13-1210 600V 30A 13-1216 600V 35A 13-1232 600V 50A $2.15 Click here to order | |  Model 13-2500 Vertical Euro Mag Terminal BlockThese handy connectors are designed for quick and easy connection of wire to wire or wire to board configurations and are then unplugable when needed and are equipped with a sturdy latch to prevent accidental disconnect. The wire entry is through the right side of the connector or vertical (right angle) to the mating connector. Rating: 15A@ 300V UL Listed & CSA Certified Center Spacing: .2” (5.08 mm) Wire Size: #12 - 22 AWG Housing Material: Type 6/6 Polyamide 94VO Screw Size: 3 mm X 5 mm Zinc Plated Steel Operating Temperature: 105oC (221oF) max. -40oC (-40oF) min. $1.52 Click here to order | ||||
| |  Model 13-2600 Horizontal Euro Mag Terminal BlockThese handy connectors are designed for quick and easy connection of wire to wire or wire to board configurations and are then unpluggable when needed and are equipped with a sturdy latch to prevent accidental disconnect. The wire entry is through the rear of the connector or horizontal (in line) to the mating connector. Specifications: Rating: 15A@ 300V UL Listed & CSA Certified Center Spacing: .2” (5.08 mm) Wire Size: #12 - 22 AWG Housing Material: Type 6/6 Polyamide 94VOM Screw Size: 3 mm X 5 mm Zinc Plated Steel Operating Temperature: 105oC (221oF) max. -40oC (-40oF) min. $1.52 Click here to order | |  Model 13-2700 Vertical Mount DePluggable Printed Circuit Mount Male Header SocketsThese sockets are available in both Vertical & Horizontal configurations and mate with the 13-2500 and 13-2600 series. They have closed side bases and a mating latch to prevent accidental disconnection of the plugs. Specifications: Rating: 15A@ 300V UL Listed & CSA Certified Center Spacing: .2” (5.08 mm) Contact Material: Tin Plated Brass Housing Material: Type 6/6 Polyamide 94VO Recommended PC Hole size: .055” (1.40 mm) use #55 drill bit Philmore # 12-552 Operating Temperature: 105oC (221oF) max. -40oC (-40oF) min. $0.82 Click here to order | ||||
| | Model 13-2800 Horizontal Mount DePluggable Printed Circuit Mount Male Header Sockets These sockets are available in both Vertical & Horizontal configurations and mate with the 13-2500 and 13-2600 series. They have closed side bases and a mating latch to prevent accidental disconnection of the plugs. Specifications: Rating: 15A@ 300V UL Listed & CSA Certified Center Spacing: .2” (5.08 mm) Contact Material: Tin Plated Brass Housing Material: Type 6/6 Polyamide 94VO Recommended PC Hole size: .055” (1.40 mm) use #55 drill bit Philmore # 12-552 Operating Temperature: 105oC (221oF) max. -40oC (-40oF) min. $0.82 Click here to order | ||||||
| Toggle Switches | |||||||

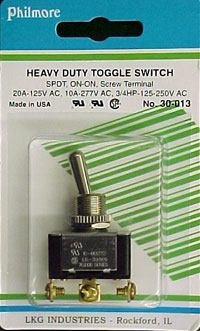

| |  Model 30-010 On-Off-On Heavy Duty Toggle SwitchSPDT, On-Off-On, Screw Terminal 20A-125VAC, 10A-277VAC 3/4HP-125-250VAC
1/2" Mounting Hole | |  Model 30-013 Bat Handle Toggle SPDT SwitchCurrent Rating: 20A @125V AC, 10A @ 277V AC 3/4 HP @ 125/250V AC Initial Contact Resistance: 50 Meg ohm (Max.) Insulation Resistance: 100 Meg ohm (Min.) @ 500V DC Dielectric Strength: 1000V AC 50/60 Hz for 1 minute Contact Material: Brass - Bright Nickel Plate Terminal Material: Brass Terminal Type: Screw
| ||||

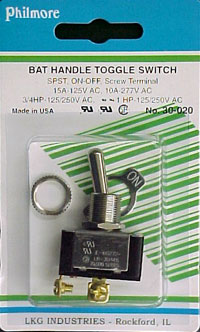

| |  Model 30-020 Bat Handle Toggle SPST SwitchCurrent Rating: 20A @125V AC, 10A @ 277V AC 3/4 HP @ 125/277V AC *1-1/2 HP @ 125/277V AC Initial Contact Resistance: 50 Meg ohm (Max.) Insulation Resistance: 100 Meg ohm (Min.) @ 500V DC Dielectric Strength: 1000V AC 50/60 Hz for 1 minute Contact Material: Brass - Nickel Plate Terminal Material: Brass
Terminal Type: Screw | | Model 30-022 On-On Bat Handle Toggle Switch SPDT, On-On, Screw Terminal 15A-125VAC, 10A-277VAC 3/4HP-125/250VAC
1/2" Mounting Hole | ||||

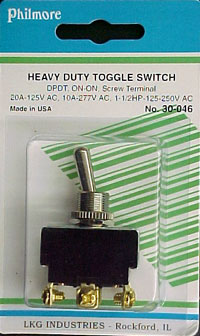

| |  Model 30-046 Bat Handle Toggle DPDT SwitchTerminal Current Rating: 20A @125V AC, 10A @ 277V AC 1-1/2 HP @ 125-250V AC Initial Contact Resistance: 50 Meg ohm (Max.) Insulation Resistance: 100 Meg ohm (Min.) @ 500V DC Dielectric Strength: 1000V AC 50/60 Hz for 1 minute Contact Material: Brass - Bright Nickel Plate Terminal Material: Brass
Terminal Type: Screw | |  Model 30-050 Bat Handle Toggle DPDT Momentary SwitchCurrent Rating: 20A @125V AC, 10A @ 277V AC 1-1/2 HP @ 125-250V AC Initial Contact Resistance: 50 Meg ohm (Max.) Insulation Resistance: 100 Meg ohm (Min.) @ 500V DC Dielectric Strength: 1000V AC 50/60 Hz for 1 minute Contact Material: Brass - Bright Nickel Plate Terminal Material: Brass
Terminal Type: Screw | ||||
| | Model 30-055 Momentary Heavy Duty Toggle Switch SPDT, (On)-Off-(On) Momentary both ways, screw terminal 20A-125VAC, 10A-277VAC 3/4HP-125/250VAC

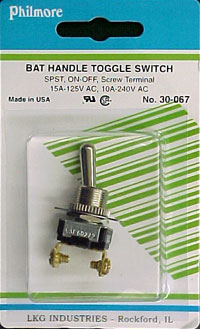

1/2" Mounting Hole | |  Model 30-067 Bat Handle Toggle SPST SwitchCurrent Rating: 15A @ 125V AC, 10A @ 277V AC Initial Contact Resistance: 50 Meg ohm (Max.) Insulation Resistance: 100 Meg ohm (Min.) @ 500V DC Dielectric Strength: 1000V AC 50/60 Hz for 1 minute Contact Material: Brass - Silver Plate Terminal Material: Brass
Terminal Type: Screw | ||||
| |  Model 30-078 On/Off Toggle SwitchSPST, On-Off, Solder Terminal 20A-125VAC, 10A-277VAC 3/4HP-125/250VAC
1/2" Mounting Hole | |  Model 30-10007 On-Off Miniature Toggle SwitchSPST, On-Off, Solder Terminal 5A-120VAC/28VDC, 2A-250VAC
1/4" Mounting Hole | ||||
| |  Model 30-10030 On-Off Sub-Miniature Toggle SwitchOn-Off Sub-Miniature Toggle Switch 3A @ 120VAC, 28VDC Solder Terminals

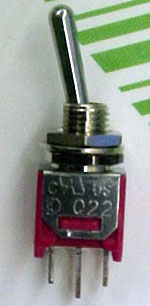

Mounting Hole: 0.203" | |  Model 30-10042 On-On Sub-Miniature Toggle SwitchOn-On Sub-Miniature Toggle Switch 3A @ 120VAC, 28VDC Solder Terminals
Mounting Hole: 0.203" | ||||

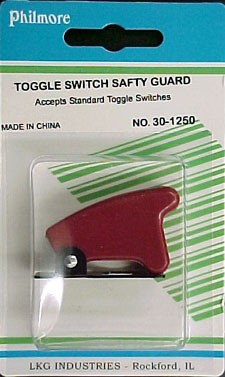

| |  Model 30-1250 Toggle Switch Safety GuardFeatures: Rugged Spring-loaded Design Black Steel Base w/ Red urea Plastic Cover
Fits ALL Metal Lever toggles w/ 15/32 X 32 Bushing

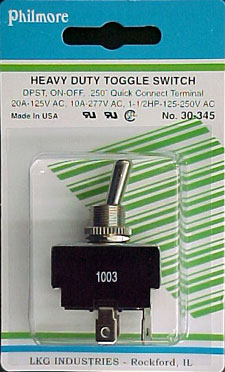

| |  Model 30-345 Bat Handle Toggle DPST SwitchCurrent Rating: 20A @125V AC, 10A @ 277V AC 1-1/2 HP @ 125-250V AC Initial Contact Resistance: 50 Meg ohm (Max.) Insulation Resistance: 100 Meg ohm (Min.) @ 500V DC Dielectric Strength: 1000V AC 50/60 Hz for 1 minute Contact Material: Brass - Bright Nickel Plate Terminal Material: Brass
Terminal Type: .250� Quick Connect
| ||||
| Video Accessories | |||||||
| |  Model AV521YC Audio/Video SwitchPhilmore Audio/Video Component Selector - 5 Inputs/2 Output Use with Satellite systems, VCR's, DVD Players, Laser Disc Players, Cable Boxes, Video Games and much more. Allows you to connect up to five inputs to two television. There is also an extra (front mounted) mini stereo jack for stereo headphones or speakers. 5 Inputs / 2 Outputs Audio Inputs: 5 sets of RCA Audio Outputs: 2 sets of RCA jacks (left & right) Both S-VHS and RCA connections Video Inputs: 5 S-VHS Jacks + 1 RCA Jack
Video Outputs: 2 RCA jacks + 2 S-VHS jacks
| ||||||
