 Arc Vision was founded as a U.S. based company January 2000. The years of experience their parent company gained in the manufacturing products for major CCTV suppliers enabled them to provide a quality CCTV product at competitive prices.
Arc |
| Camera Model 12739 Color Bullet Camera Model 12847 Color Board Camera Model 12B49 Weather Proof IR Camera Model 19102 Digital Video Capture Camera Camera Lens Model 19000 Board Camera Lens Cameras B & W Model 13827 B/W Mini Camera Digital Video Record Model 19122 Mini Digital Recorder Model 19600 Network Capable DVR Quads/Switchers Model 19003 B/W Real Time Quad Processor |
| Camera | |||||||

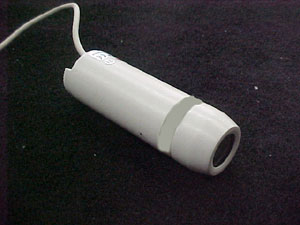

 |  Model 12739 Color Bullet CameraColor Weather Proof Bullet Style Camera. 330 Lines of Resolution Minimum Illumination 0.5 Lux Auto Gain Control 3.6mm Wide Angle Lens

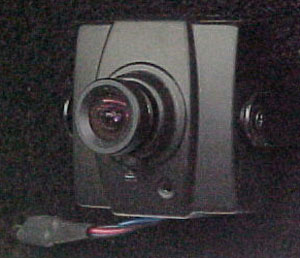

Power Consumption 12VDC @ 120mA | |  Model 12847 Color Board CameraCan be used for Spy Camera applications, Nanny Cams Color Mini Case Camera, actual size 1 1/2" Square Resolution: 330 Lines Minimum Illumination: 0.5 Lux Lens: 3.6mm Power Consumption: 12VDC 220mA
Dimensions 1 3/8" X 1 1/2"
| ||||

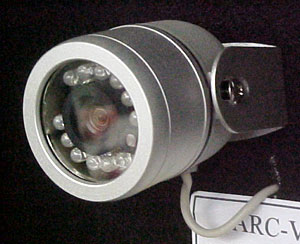

| |  Model 12B49 Weather Proof IR CameraWeather Proof IR Camera, Color during the day - turns to B/W at night. Infrared LED's illuminate ups to 30 feet away in total darkness. 1/3" CCD Resolution: 330 Lines Minimum Illumination: 0.5 Lux Lens: 3.6mm
Infrared: 12 IR | |  Model 19102 Digital Video Capture CameraGreat for a Nanny Cam application or easy home surveillance. No cables or external recorder needed. All In One!!! Built-in High Quality Color Pinhole Camera, which enables continous recording, motion detection recording and stores pictures in the Flash Memory. Power supported by four AA batteries (Batteries should last between 4 to 6 hours) or plug-in Adaptor (supplied). Can record onto the Flash memory from 1 shot every 10 seconds up to 15 frames per second Dimensions: H 3.9" X W 2.75" X D 1.4"
Comes with Mounting Bracket | ||||
| Camera Lens | |||||||
| |  Model 19000 Board Camera LensBoard Camera Lens $17.00 Click here to order | ||||||
| Cameras B & W | |||||||
| | Model 13827 B/W Mini Camera Can be used for Spy Camera applications, Nanny Cams B/W Mini 1/3" CCD Camera 400 Lines of Resolution Minimum Illumination 0.3 Lux 3.6mm Wide Angle Lens Power Consumption 12VDC @ 140mA
Dimensions 1 3/8" X 1 1/2" | ||||||
| Digital Video Record | |||||||
| |  Model 19122 Mini Digital RecorderNEW!!! MINI DVR Mini Digital Recorder - Records Video and Audio. Small enough to fit in a shirt pocket - Dimensions 5" X 2 9/16" X 1 3/32". Great for hidden surveillance applications. Records on to a SD card. Uses 2 AA batteries or the supplied Power Supply. Light Weight only 150 grams without the batteries. Will record continous or based on Motion. Works like a full size DVR. Records in MPEG4 format. Easy to off load onto a standard Video Cassette or burned onto a disc.
SD card not supplied | |  Model 19600 Network Capable DVRDigital Video Recorder, Network Capable with a High speed static IP address. 4 or 16 camera input (BNC) Built in Quad Processor Recording Modes: Continous, Manual, Schedule and Motion Detection Frame Rate: Quad mode - 120fps, Si
120 Gig Hard Drive | ||||
| Quads/Switchers | |||||||
| |  Model 19003 B/W Real Time Quad ProcessorFull quad display at real time refresh rate High resolutions picture Supports quad-switch and selection full screen functions No division border Video gain adjustable User-friendly front panel design $100.00 Click here to order | ||||||
