Integrated Circuits

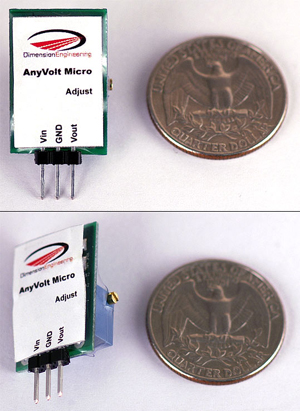

Model Anyvolt Micro Universal DC-DC Converter
AnyVolt Micro is a miniature step-up / step-down switching DC-DC converter. The output is adjustable from 2.6V to 14V and currents up to 0.5A can be drawn. AnyVolt Micro is useful when you need to step from a lower voltage to a higher voltage, or when your input voltage occasionally dips below the output voltage.

The output voltage is set with a small screw potentiometer on the side of the AnyVolt Micro. Once the output voltage is set, it does not matter whether input voltage is higher, lower, or the same as the desired output i.e. there is no dropout voltage.

The AnyVolt Micro is pin-compatible with the common 78XX series of linear voltage regulators, so it will work with breadboards and other popular prototyping methods.

AnyVolt Micro is very different from any other DC-DC converter on the market so please read the entire datasheet thoroughly before buying or using one.

AnyVolt Micro is the smaller, lighter and cheaper successor to AnyVolt Mini. It also adds thermal, overcurrent and short circuit protection, making it very hard to kill (like zombies).

Specs:
2.6V to 14V output voltage range
2.6V to 14V input voltage range
0.5A max input or output current at < 10V

$23.95
Click here to order


Light Emitting Diode

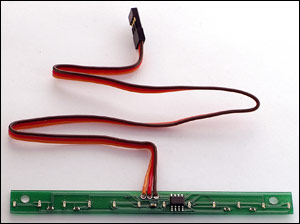

Model Sinewinder LED Chase Light
Sinewinder is an attractive, easy to use lighting system for your R/C vehicle. Just plug the Sinewinder light into a spare receiver channel, or use a separate 5V source.

Sinewinder has 12 bright LEDs that scan from side to side, with a short trail after the leading light. The lights can be switched on and off by using your radio. If no signal is present or the signal wire is cut, the lights will default to being on.

Specifications:
Input voltage: 3V to 6V
Current draw: 30mA max
4" / 10cm long

$14.95
Click here to order


Misc. Tools

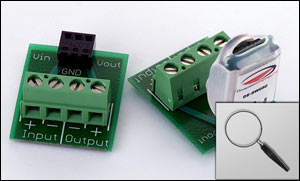

Model VREG Breakout Board
If you do not feel comfortable soldering, our voltage regulator breakout board can help. It extends the regulator's connection pins to a set of screw terminals that are easier to manipulate. To use the board, plug in the voltage regulator you want with the correct orientation. Then you can connect your power source and load by stripping wires and clamping them into the screw terminals.

Now you can power wireless cameras, lighting systems and much more with minimum hassle.

This breakout board can house AnyVolt Micro, and standard 78xx style linear regulators. The breakout board does not ship with any voltage regulators included.
$10.00
Click here to order
